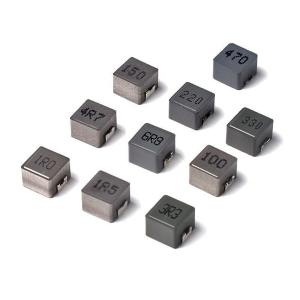

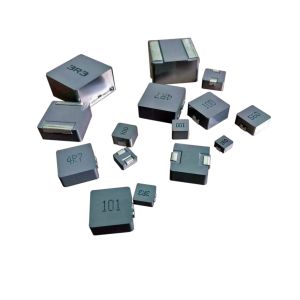

SMD Shielded Inductor , High Current SMD Shielded Inductors , DR Power Inductor

Features:

1. Low DCR SMD Large-current
2. Shielded SMD power chip inductor
3. Magnetic shielded surface mount inductor with high-current rating
4. Low resistance to deep power loss minimumOperating temperature: -20 to 85℃ (contain heating coil)
5. Terminal should not peeled offHeat endurance of reflow soldering: 240℃
6. Dielectric strength: no dielectric breakdown at 100V DC for one minute between wire and core

Size:

• 0420: 4x4.5x2mm
• 0520: 5.2x5.5x2mm
• 0530: 5.2x5.5x3.0mm
• 0612: 6.6x7.4x1.2mm
• 0618: 6.6x7.4x1.8mm
• 0624: 6.6x7.4x2.4mm
• 0630: 6.6x7.4x3.0mm
• 0640: 6.6x7.4x4.0mm
• 0650: 6.6x7.4x5.0mm
• 1040: 10.3x11.2x4.0mm
• 1050: 10.3x11.2x5.0mm
• 1250: 12.8x13.2x5.0mm
• 1260: 12.8x13.2x6.0mm
• 1270: 12.8x13.2x7.0mm
• 1340: 13.0x14.2x4.0mm
• 1350: 13.0x14.2x5.0mm
• 1360: 13.0x14.2x6.2mm
• 1510: 16.5x17.5x10mm
• 1513: 16.5x17.5x13mm
• 1707: 16.9x17.3x7.0mm
• 2313: 22.0x23.5x13.0mm

Note: Product specifications can be customized.Custom inductance values are available.

   Shaanxi SHINHOM Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 37 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, SHINHOM has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
