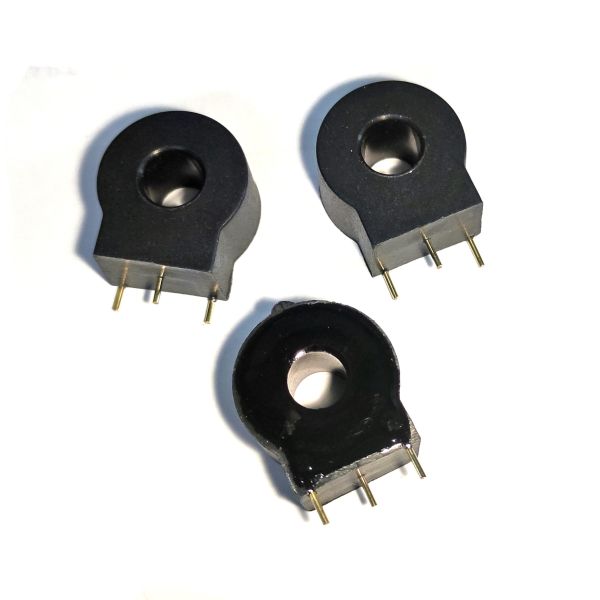

ACST Series Current Transformer Miniature Low Profile PCB Mount​, CT,Current transformer Manufacturer

FEATURES:

• Current range: up to 50A maximum
• Turns ratio: 1:50, 1:100
• Working frequency range: 50/60Hz
• Insulation resistance: 500V DC >100MΩ
• Hi-Pot : 3000V 1mA 60S
• Temperature range: -25℃ to +70℃
• Storage Temperature: -25℃ to +75℃
• Resistance to soldering heat:260℃ for 10 seconds
• Low profile,directly to PCB.
• PBT 94V0 Case burn-resistant epoxy resin,stable.

APPLICATIONS:

• AC energy Meter Power transducer RTU
• Protection current transformer
• AC kilowatt hour meter
• Electronical monitoring system
