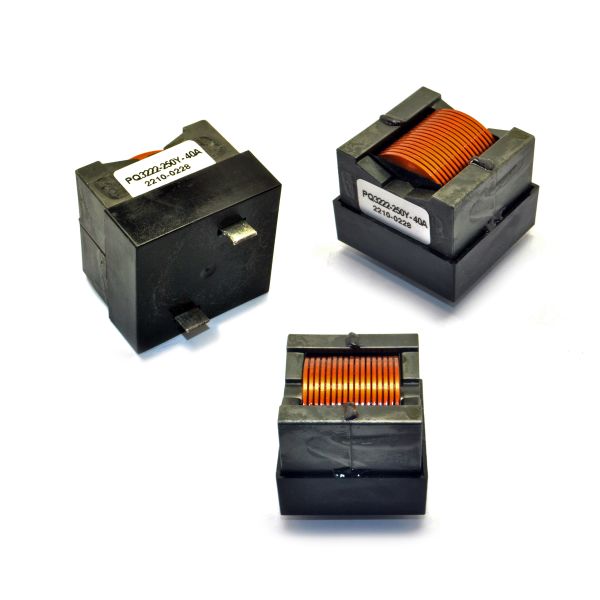

PQ3222 Series Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability,Dip inductor

ELECTRICAL SPECIFICATIONS​:

• Inductance range: 25uH
• Super Larg Current up to 0A
• All test data is referenced to 25℃ ambient.
• Test conditon: 1KHz,0.1V
• Irms:DC current(A) that will cause an approximate△T of 40℃.
• Isat:DC current(A) that will cause Lo to drop approximate 20%.
• Operating temperature range is 40℃ to 105℃.
• The part temperature(ambient and temp rise)should not exceed105℃ under worse case operating conditions. Circuit design,component placement, PWB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the endapplication.

Application:​

• power inductors are ideal for automotive applications and other high-temperature environments

• Flat wire windings provide extremely low DC and AC resistance.
• Magnetic shielding to minimize EMI
• Through-hole (TH) mounting for rugged board attachment
• Assemblage design,sturdy srtucture
• High inductance,high current,low magnetic loss,low ERS,small parasitic capacitance
• Flat wire winding,achieve a low DCR
• Temperature rise current and saturation current is less influenced by environment

Note: Product specifications can be customized.
