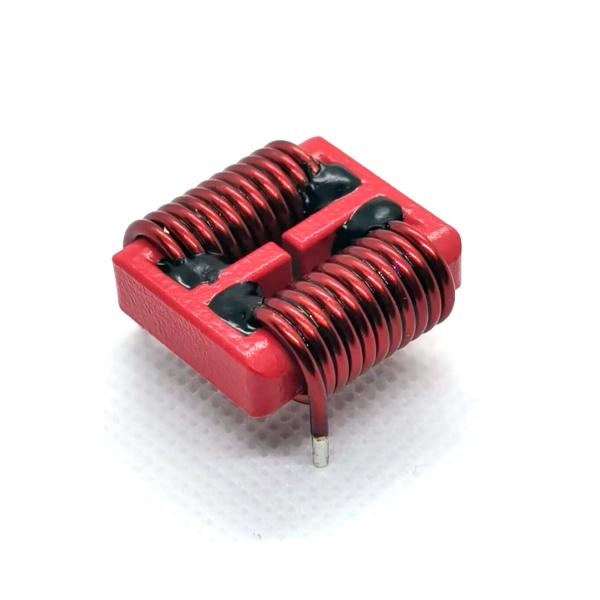

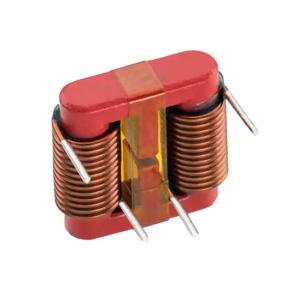

Common Mode Choke Coils With Bypass For RFI Suppression , Common Mode Power Line Choke

Common mode inductors (common mode chokes) are commonly used in switching power supplies of computers to filter common mode electromagnetic interference signals.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.

APPLICATION:

1. Common mode choke coils with bypass
2. Common mode and differential inductance in one single component
3. excellent EMI suppressor for LED ballast
4. High-frequency and low loss
5. Ideal for lighting ballast and SMPS application, AC-DC, DC-DC, motor regulation, AC regulation RoHS compatible (Pb-free) versions are available
6. Customized specifications are welcome

Electrical parameters:

1. L: 230uH±40%@10KHz,0.1V
2. DCR: 3.6mΩ Max
3. Rated current: 16.0A Max(Temp. rise 40℃ Max)
4. Rated voltage: 250V Max
5. Hi-Pot: 1500Vac,3mA,3S Coil to Coil
6. Operating temperature: -25℃ to +115℃
7. Storage temperature: -25℃ to +65℃

Notes: Customized is available
