SCTK732A Series Split Core Current Transformer with Current Range 100mA to 3000A Single-phase Current Test

SCTK732A series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. It can save time and the installation costs.An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.

Features:

1. Rated Input: 0.5-5000A
2. Rated Output: 0.333V(AC) or 0-5A
3. Small size and easy mounting
4. Wide inner window, allowing clamping of big cables or bus bars
5. Wide range of sizes to accommodate all existing installations
6. High accuracy and reliability

Applications:

1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current, power and energy monitoring device.

Electrical Parameter

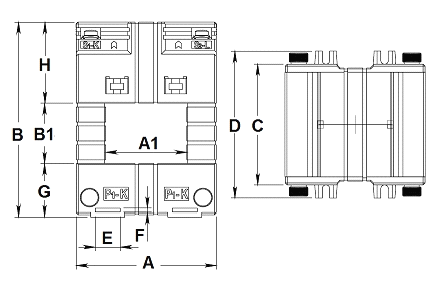

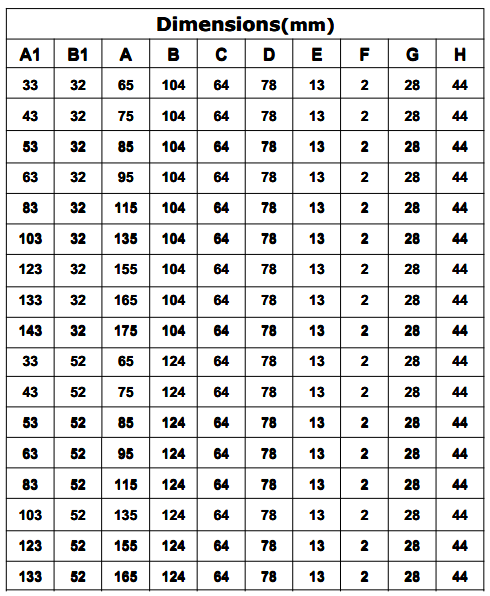

Mechanical Parameter

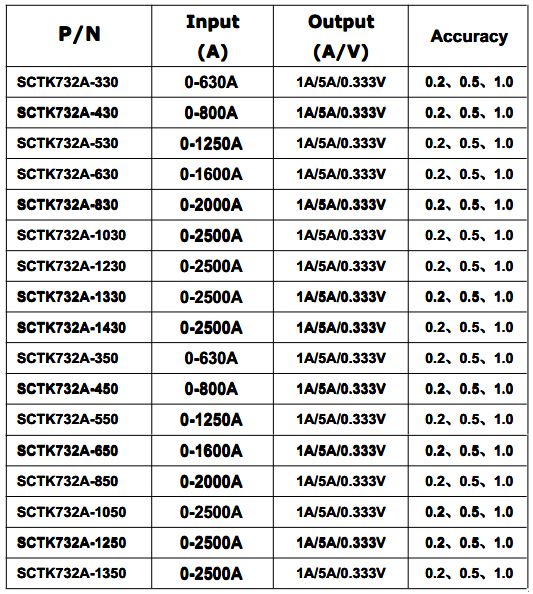

Type selection

Notes: Product specifications can be customized
