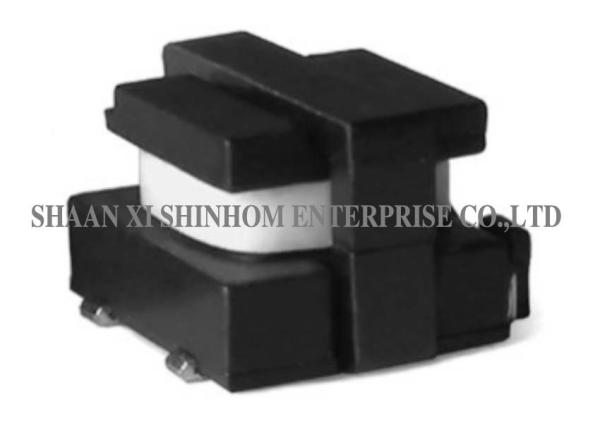

CT02 Series Surface Mount Device High-frequency Current Transformers with Up to 18A Current

FEATURES:

• Smallest Footprint
• Hi-Pot tested at 1500VAC
• Working frequency range: 1kHz to 1MHz
• Current range: up to 18A maximum
• Turns ratio: 1:50. 1:100. 1:150, 1:200 and 1:300

APPLICATIONS:

• AC/DC Converters
• DC/DC Converters
• POL Converters
• High-frequency current control circuit and pulse current test

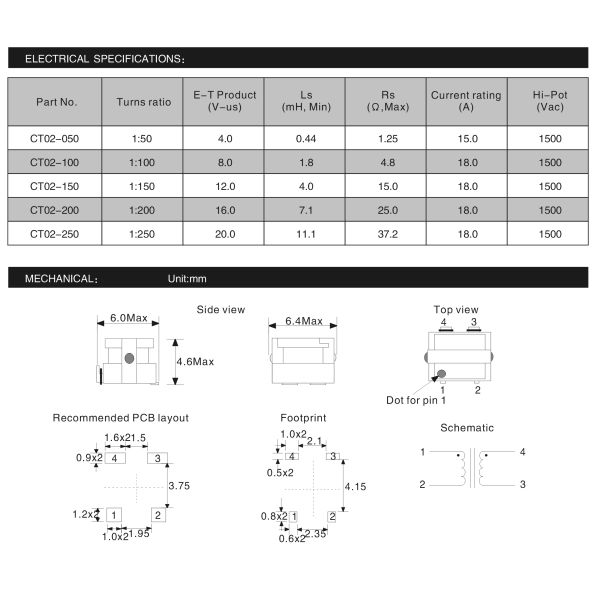

TECHNICAL INFORMATION:

• Tested at 10kHz, 0.1Vrms.
• Electrical specifications at 25℃
• Operating range: -40 ℃ to +130 ℃. This is a combination of ambient plus temperature rise.
• Meets UL 94V-0.
• DC current through primary, plus turns-ratio-divided DC current through secondary winding, to cause 40℃ temperature rise at 25℃ ambient.
• All products are RoHS-compliant

Notes: Product specifications can be customized
