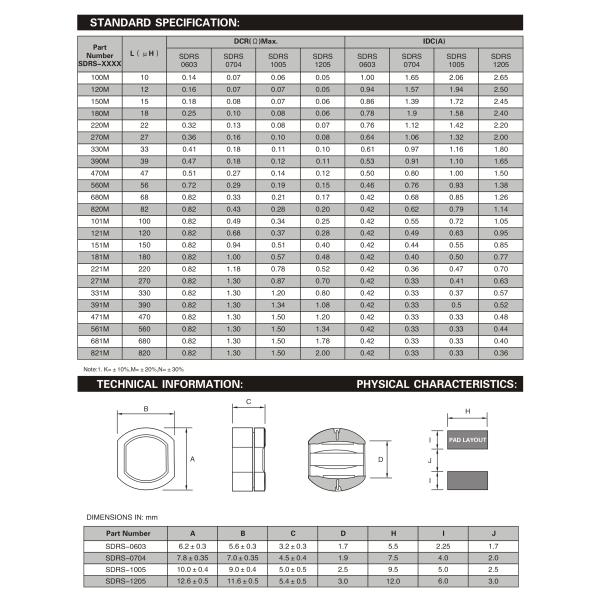

SDRS Series magnetic shielded surface mount power inductors,SMD inductor, high current capacity and low DCR

FEATURES:

·Current up to 2.6A
·Very Small Foot Pint
·Flat-top for Pick& Place
·Shielded structure

COMMON APPLCATIONS:

·Power supply for VTRs .
·OA equipment.
·LCD televisions.
·Notebook PCs.
·Portable communication equipment.
·DC/DC converters,etc.

TEST EQUIPMEN AND CONDITIONS:

·Testing: (Equivalent acceptable)
lnductance:HP4285A
RDC:QuadTech 1880 Milliohmmeter
-Q- HP4342A - SRF-HP4191A
·IDC Max:Determined when superimposed DC current is decreased 10% against its initial value
·Operating temperature: -40℃ to +85℃
·Storage Temperature: -40℃ to +105℃
·Solder methods: Vapor Phase,Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
·Solvent resistance: Conforms to MIL-STD-202E

Note: Product specifications can be customized.
