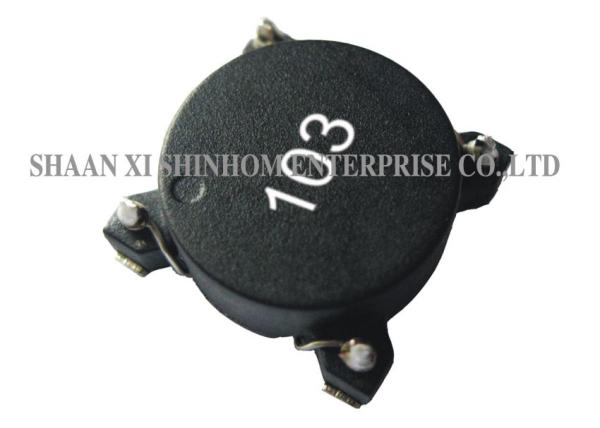

STC07 Series surface mount toroidal coils and common mode toroidal choke,SMD Common mode inductor,pad size 16.5*17.5mm

FEATURES:

· Inductance: 1mH to 39mH

· Rated current: 0.3A to 2A

· Higher Frequency
· High Saturation Material
· Low EMI Radiation
· Pick and PLace
· Low DC Resistance

· Operating temperature:-40℃ to +125℃
· Storage Temperature: -55℃ to +125℃

· Inductance measure at 100KHz 0.1VRms.
· Insulation Resistance: 100Vdc 1KMΩmin.

COMMON APPLICATIONS:

· Electronic Appliances
· DC - DC Conversion (Paraller Mode)
· Isolation/Coupling(Transformer)
· Input Filter(Serial Mode)
· EMI/RFI Suppression

Max of 35% saturation on DC bias applied
