3:1 Auto transformer,RF Balun transformer,SMD customized Balun transformer,75 Ohm,5MHz - 1250MHz

Features:

• 3: 1 Impedance
• 75Ω Characteristic Impedance
• Frequency: 5 to 1250 MHz
• 260°C Reflow Compatible
• RoHS compliant

Applications:

• For broadband and wireless communications
• For VHF/UHF receivers/transmitters and push-pull amplifiers

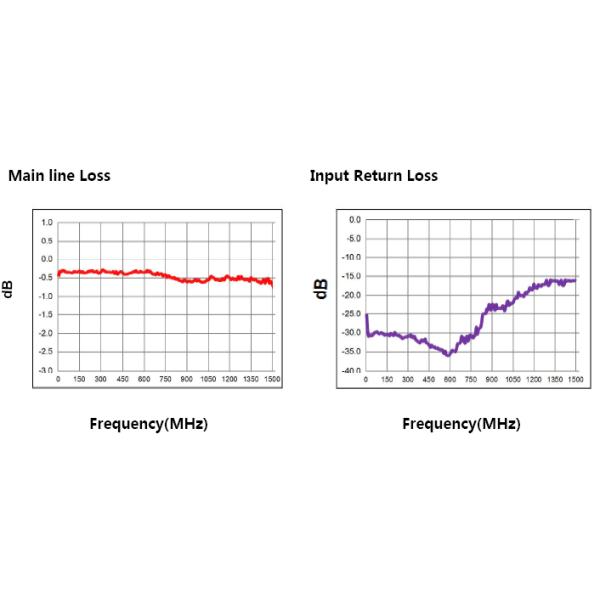

ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

• Frequency: 5-1250MHz
• Operating temperature: -40℃ to 85℃
• Storage temperature: -55℃ to 100℃

Pin configuration

   Shaanxi SHINHOM Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 37 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, SHINHOM has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
