High frequency 20W Planar Transformer,PCB Mounting Planar Transformer,DC/DC Module Power ER Series Planar Transformer

FEATURES:

• PCB planar transformer
• Planar switching power transformer
• Off the shelf SMT planar transformer
• Power Rating Up to 40 Watts

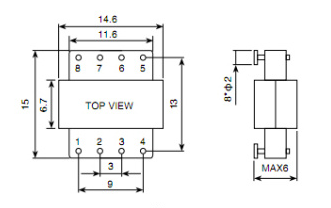

• Footprint 15.0 mm×14.6 mm
• Lower Profile of 6.0 mm
• High Isolation (operational) 1500 Vdc
• High Frequency 200 kHz-350 kHz
• Operating Temperature -40℃ to +125℃
• Cost effective and competitive prices.
• High Creepage and Clearance distances between primary and
• Applicable to all SMPS topologies.
• Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
• Specially designed heat-dissipating Clasps.

APPLICATIONS:

• High performance DC/DC converters.
• High efficiencies up to over 98 percent, high power density of 400 watts per cubic inch DC/DC converters.
• For forward, full-bridge, half-bridge and push-pull DC/DC converters.
• Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
• Telecommunications, industrial control systems,
• Automotive and heavy equipment vehicle systems
