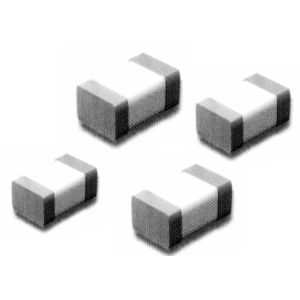

AIML1206 Series chip inductors with low DCR,Multilayer Chip Inductor, Ferrite Bead,SMD chip inductor

Features:

• Closed magnetic circuit
• Excellent solderabilityHigh reliability
• Sizes 0402 / 0603 / 0805 / 1206 / 1210
• Counter measures for complying with FCC,VDE,CSA,VCCI and CE
• Closed magnetic circuit avoids crosstalk
• Suitable for high density installation and re-flow soldering

Applcations:

• Personal Computers
• Portable Equipment
• Medical Equipment
• Testing/Measurement Equipment
• Printer Equipment
• Communication Device, Cell phone ,GPS ,PDA

Technical information:

1. Testing:(Equivalents acceptable) lnductance & Q-HP4195A+HP41951
2. DCR:VOAC-7412
3. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
4. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
5. Operating Temperature:-40℃ to +100℃

Notes: Product size and inductance can be customized
