AIML0603 Series chip inductors with low DCR,Multilayer Chip Inductor, Ferrite Bead,SMD multi-layer chip inductor

Features:

• High reliability
• Sizes 0402 / 0603 / 0805 / 1206 / 1210
• Closed magnetic circuit
• Avoids crosstalk
• Excellent solderability
• Counter measures for complying with FCC,VDE,CSA,VCCI and CE
• Closed magnetic circuit avoids crosstalk
• Suitable for high density installation and re-flow soldering

Applcations:

1. Personal Computers
2. Portable Equipment
3. CD-ROM, Hard Disk, Modem, Printers
4. DSC, DVC, PDA, DVD and HDD
5. Medical Equipment
6. Testing/Measurement Equipment
7. Printer Equipment
8. Automatic Equipment Controller
9. Converters
10. Communication Device, Cell phone ,GPS ,PDA

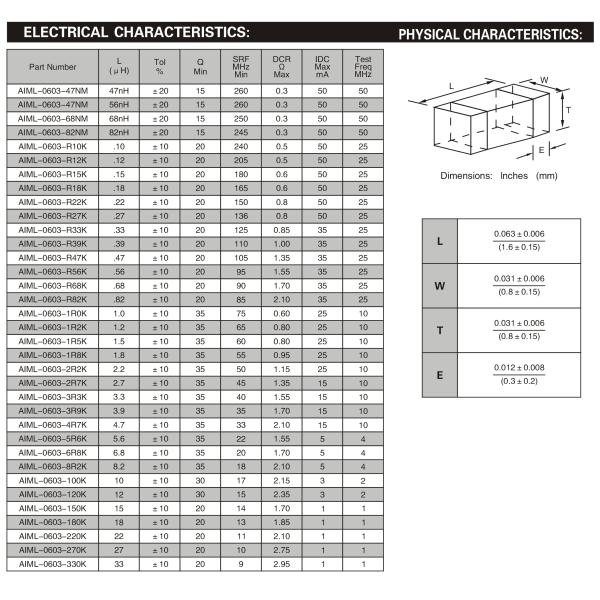

Technical information:

1. Testing:(Equivalents acceptable) lnductance & Q-HP4195A+HP41951
2. DCR:VOAC-7412
3. SRF:HP8753C
4. Solderability:75% of the terminal
5. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
6. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
7. Operating Temperature:-40℃ to +100℃

Notes: Product size and inductance can be customized
