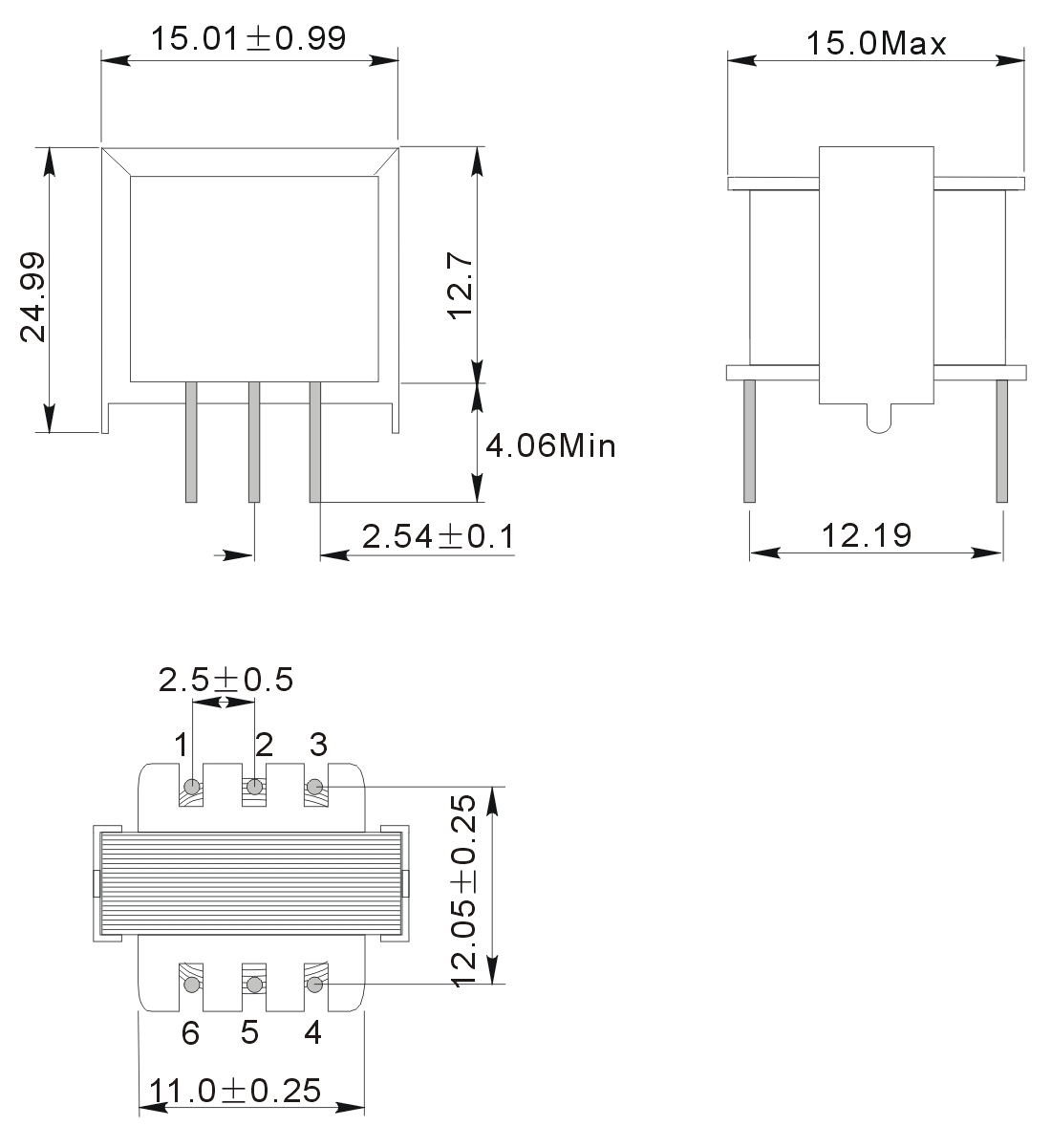

Audio Transformers with 20Hz to 20KHz Frequency and Ei Type Transformer with Frame and Lead Wire

FEATURES:

1. RoHS Directive-compliant
2. Audio transformer
3. Operating temperature:-25 to +125°C
4. Storage temperature: -25 to +85°C
5. Widely used in audio systems
6. Isolated telecommunication transformer
7. SMD fax modem telecom transformers SMD
8. Audio meets UL 1950 or EN60950 telecom transformer

Electrical specification

1. ImPedance: Pri: 20KΩ±10%@1KHz, SEC: 600Ω±10%@1KHz
2. DCR: Pri:693Ω±15% ,SEC:66Ω±15%
3. Breakdown voltage:100VAC HI-POT for 1minute
4. Insulation:>10MΩ@ 100VDC
5. Maximum output: 75mW
6. Frequency response:±3dB,300Hz-3.4KHz@1KHz 0dB Waxing:vacuum treatment
7. Other: can be water washed with water temperature less than 20℃
8. PC leads are soft metal wire and can be adjusted to fit a variety of applications
