PCB Mounting High-frequency Current Transformers with Up to 30A Maximum Current input

FEATURES:

1. Low profile,directly to PCB.
2. PBT 94V0 Case burn-resistant epoxy resin,stable.
3. Toroid high frequency current transformer
4. Current range: up to 20A maximum

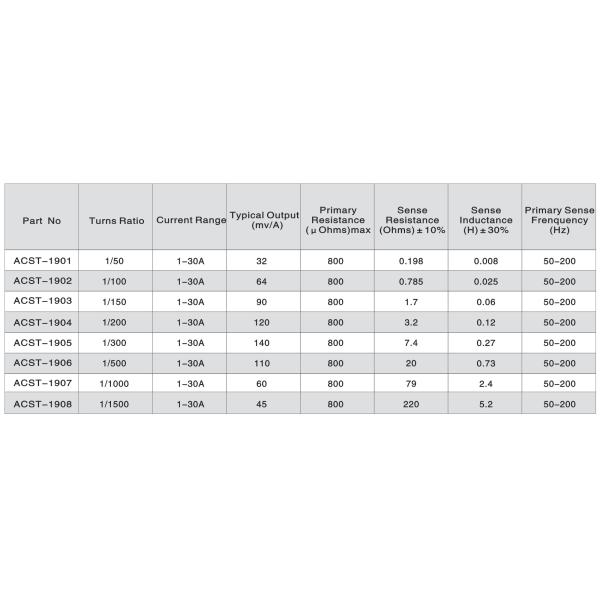

5. Turns ratio: 1:50,1:100,1:150,1:200,1:300,1:500,1:1000,1:1500

TECHNICAL INFORMATION:

1. Working Frequency range: 50Hz~200Hz
2. Insulation resistance: 500V DC >100MΩ
3. Hi-Pot : 3000V 1mA 60S
4. Temperature range: -25℃ to +70℃
5. Storage Temperature: -40℃℃ to +85℃℃
6. Resistance to soldering heat:260℃ for 10 seconds
7. Marking: Part number and date code

   Shaanxi SHINHOM Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 37 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, SHINHOM has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
