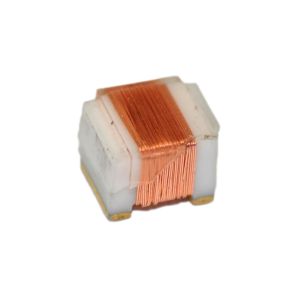

SMD Wire Wound Ceramic Chip Inductor For RF (Radio Frequency) Modules

Features:

• RoHS Compliant
• Ceramic body and wire wound construction provide high SRF.
• These ultra – compact inductors provided exceptional Q values, even at high frequencies.
• Their ceramic construction delivers the highest possible SRF as well as excellent Q values.
• The non-magnetic coil form also assures the utmost in thermal stability, predictability and batch consistency.

Applications:

• RF modules/products for
• Cellular phone,
• GPS receiver,
• Base Station,
• Repeater,
• Wireless LAN/ Mouse/ Keyboard/ earphone,
• Remote control,
• Security system,
• Telecom & wireless communication
• And other electronic devices.

Notes:

• Tolerance:G=±2%,J=±5%,K=±10%
• Packaging: Clear tape and reel {standard}
• L/Q: Agilent/HP4291A+ Agilent/HP16197A
• SRF: Agilent/HP8753D / Agilent/HP4291A
• RDC: CH502BC/HP4338B
• Irms for a 15°C rise above 25°C ambient.
• Operating temperature range from -40°C to 125°C. (Including self - temperature rise)

Notes: Product size and inductance can be customized
